Fruit Machine Electronic Game Kit

Fruit Machine Electronic Game Kit


Build your own real Microprocessor Controlled Fruit Machine Game Kit.


This really fantastic, high quality, and truly unique electronic kit of over 110 parts comes with all components, a 100mm square blue PCB, and a preprogrammed microcontroller containing the Fruit Machine software.

  • Product Info

    This kit is a fully electronic and visually animated Fruit Machine with three multicolour spinning symbols, plus animated score/win/lose lights, and audible musical tones.


    You really can be proud to have built this amazing project.

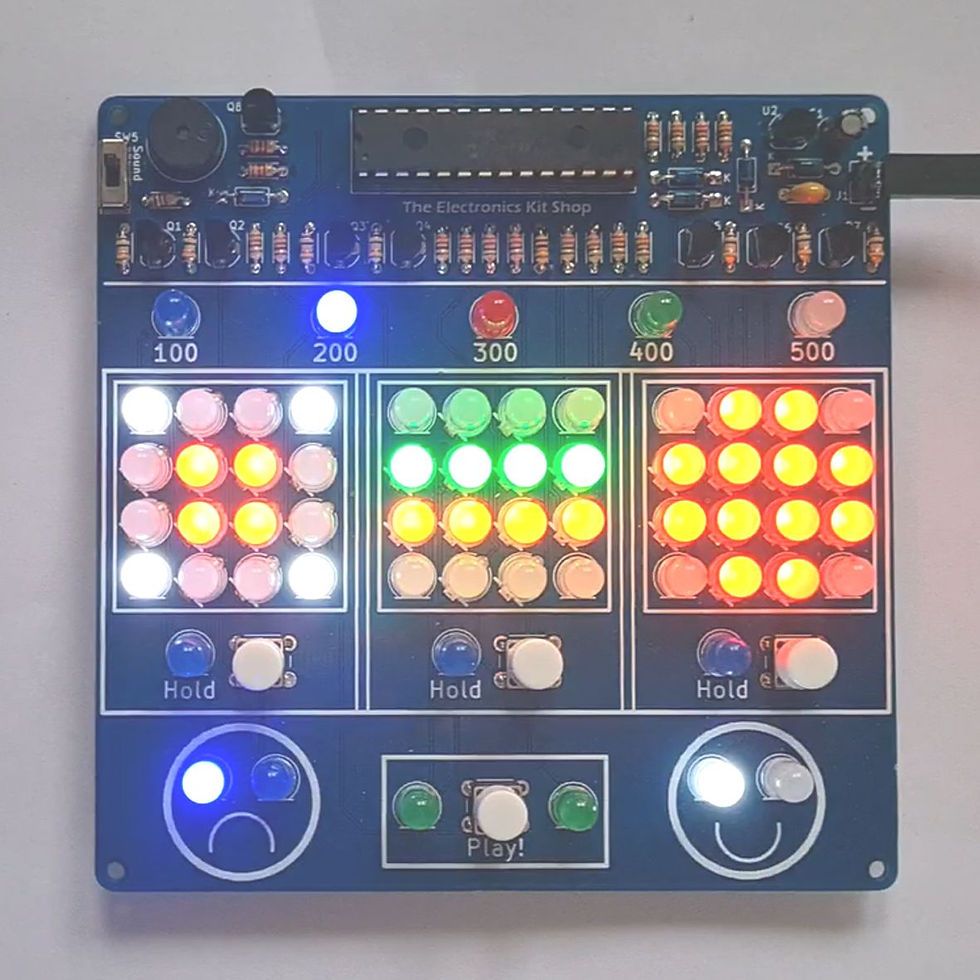

    The gameboard area has three symbols each made out of 16 coloured & white LEDs. These show a range of multicoloured graphic symbols - square, cross, circles, and bar.


    When you press "Play!" the three symbols animatedly spin though their graphics then gradually stop spinning one after another - just like a real fruit machine.


    As the symbols are spinning, the score/win/lose LEDs light up and chase around, and the beeper blips every time a symbol stops.


    If you get 3 of the same symbol in a line you win - the musical beeper plays a fanfare - your score is shown - and the happy face flashes.


    If you lose - the musical beeper plays a sad tune - and the sad face flashes. If you lost but you did get 2 symbols the same, you can "Hold" those symbols for the next play if you wish, which increases your chance of winning.


    A handy slide switch lets you switch off the sound for silent game play.


    A really superb great value project and addictive game that you just want to keep playing over and over again.


    Complete with detailed assembly instructions to help you to assemble, and a description of what each component does that you can learn from.


    Uses a 6V to 9V power source such as a 9V battery. Comes complete with a kit of power connecting wires, slide switch, and a PP3 9V battery connector (battery not included).


    Prepared for dispatch in an antistatic environment, packaged in an ESD protective bag, and sent to you in a padded jiffy bag.


    This kit is intended for advanced electronic project constructors and requires good soldering skills.

    Please note that the kit:
     - requires good soldering skills.
     - contains flashing lights.
     - is not suitable for small children due to small parts.
     - must be used only for the purposes of fun and amusement.
     - is for occasional indoor domestic UK home use.
     - must not be used near sensitive electronic or medical equipment.
     - is for hobbyist construction and enjoyment.
     - must not be exported outside of the UK.
     - is not for resale in unassembled or any assembled form.

    Comes with full technical support.
