RGB Multicolour 21 LED 3-D UFO Chaser Strobe Lights Electronic Kit

RGB Multicolour 21 LED 3-D UFO Chaser Strobe Lights Electronic Kit

SKU: CK21-3D

Build your own real Microprocessor Controlled Red-Green-Blue 21 RGB LED UFO Chaser Ring Kit - in 3-D !



A very unique 3-D kit with two levels of PCB containing 21 RGB LEDs creating an amazing 3-D display.

  • Product Info

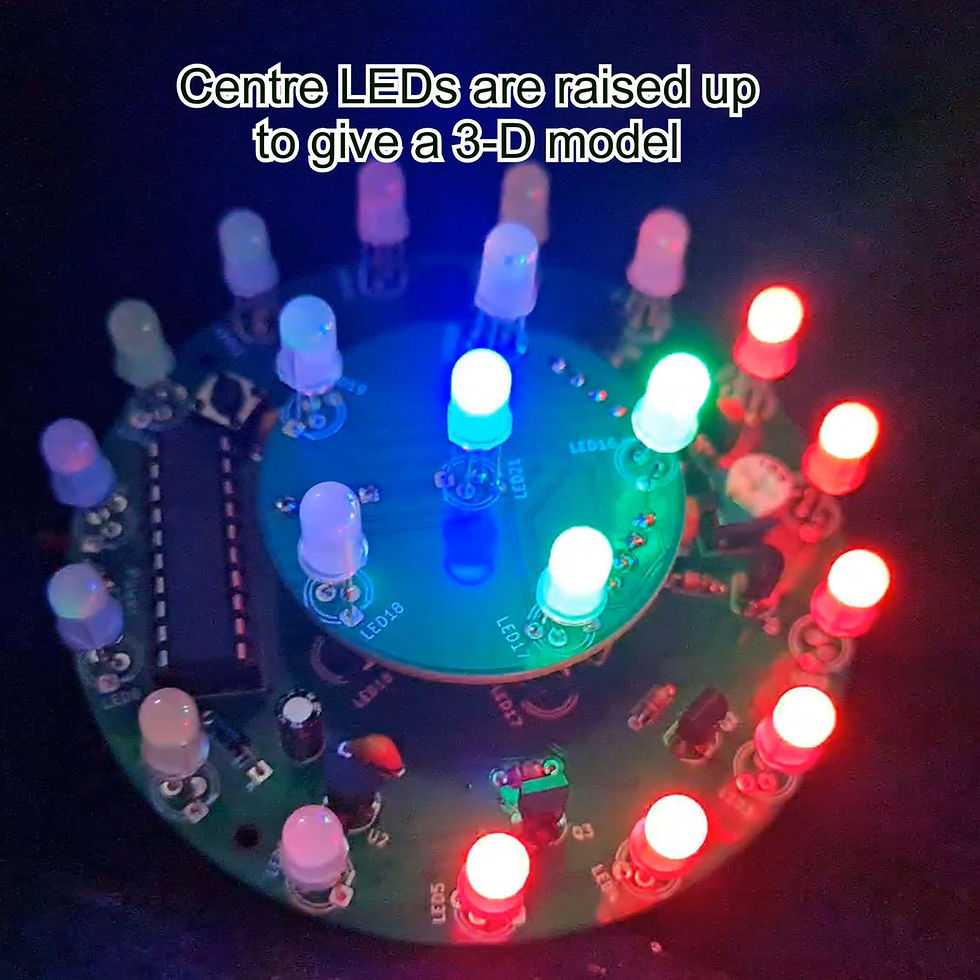

    There are two PCBs (Printed Circuit Boards) to make the 3-D effect.



    The 40mm diameter round 'command module' PCB sits raised above the 80mm (over 3") diameter round 'mother ship' PCB. On the command module are 6 RGB LEDs and on the mother ship are 15 RGB LEDs, all of which can each independently light up as red, green and blue. The multicoloured LEDs show amazing patterns as they chase around the PCBs. Looks fantastic for models, cosplay, sci-fi and even as very unique decorations.



    The kit comes with all components, the two PCBs, and preprogrammed microcontroller containing the RGB LED 3-D UFO software.



    Ideal for learning about electronics, with a useful and fun end product you can be proud to show as something you built.



    You can select to show any of the preprogrammed patterns by simply pressing the button, or you can have all patterns cycled through in sequence to give an amazing display, like in the video. Put several of these kits together to create a really fabulous display.



    The microcontroller remembers your previous pattern selection, so it is restored automatically when you next switch on.



    All patterns are animated - the LEDs appear to move and change colour and chase each other. The speed of the pattern animations can be set with the adjustment control.



    The LEDs can be fitted on the fronts or backs of the PCBs or you can put them at an angle facing out to the side, whatever is best for your project.



    If for your project you don't want to use the 3-D command module PCB, you can instead just mount all LEDs onto the single flat mother ship PCB.



    The mother ship PCB has four handy 2mm diameter mounting holes.



    Complete with detailed assembly instructions to help you to assemble, and a description of what each component does that you can learn from.



    Uses a 6V to 12V power source such as a 9V battery. Comes complete with power connecting wires and a PP3 9V battery connector.



    Prepared for dispatch in an antistatic environment, packaged in an ESD protective bag.



    Please note that the kit:
     - requires good soldering skills.
     - contains flashing lights.
     - is not suitable for small children due to small parts.
     - must be used only for the purposes of fun and amusement.
     - is for occasional indoor domestic UK home use.
     - must not be used near sensitive electronic or medical equipment.
     - is for hobbyist construction and enjoyment.
     - must not be exported outside of the UK.
     - is not for resale in unassembled or any assembled form.


    Comes with with full technical support.

£11.95Price
